Portable Gas Stove 2.2 kW – Easy to carry and store, gas-efficient, equipped with safety pressure control, 2-year warranty.

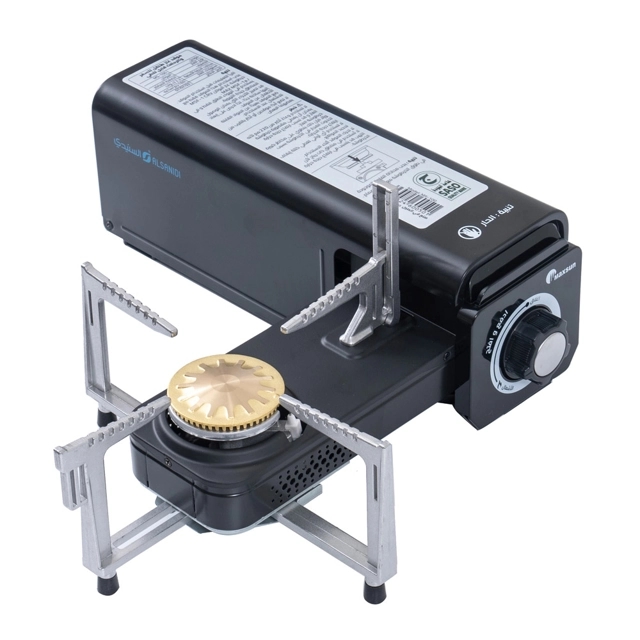

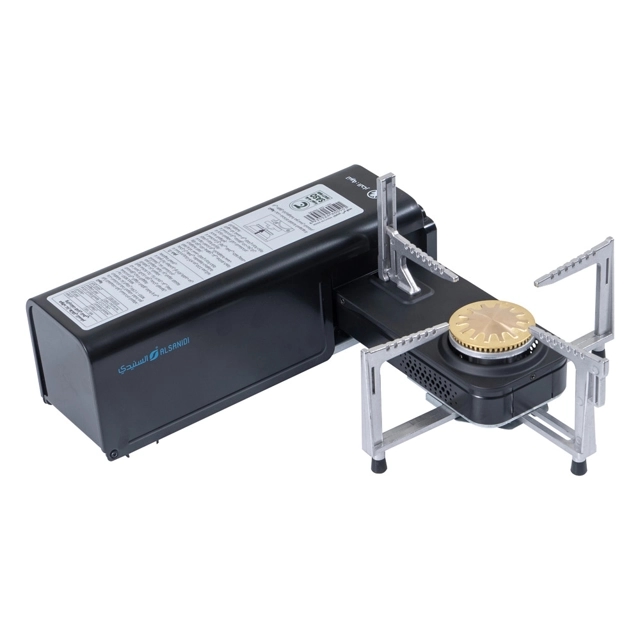

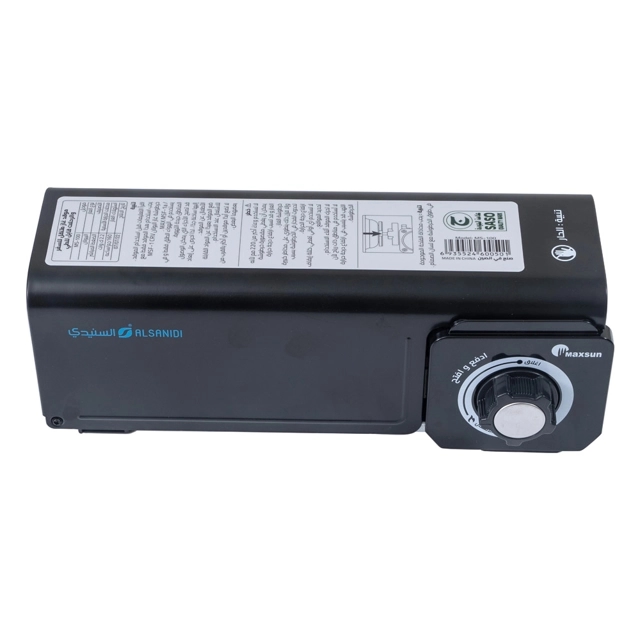

Maxan foldable portable gas stove for travel and trips Model: MS-100 Size: 331.9*12.8*11.3cm Gas type: butane Heat input: 2.2 kW Gas consumption: 160g/h Hole diameter: 0.6 mm * Shutdown pressure when the pressure safety device is activated: Device shutdown: 5.5 bar - 7.0 bar color: black Advantages:- - Portable, solid and fixed foldable gas stove - Small size, stable, convenient to use and store - Works on gas cans - Light and easy to use and carry during outings and camping warning:- - It is used in outdoor places only and in well-ventilated places. - This burner should only be used with the MAX MSF-1 CRV / MSF-1a Butane Gas Cartridge Explosion risk:- - Do not use a container larger than 220 mm because it can cover the gas cartridge compartment and may cause the gas cartridge to overheat. - Otherwise, there is a high risk of cartridge explosion due to overheating. - Do not use any utensils that cover the positioning stop block. - Do not move the stove during use. - Do not use in windy areas as the flame may cause the cartridge to overheat. CAUTION: The hole in the cartridge collar must align with the valve tongue Guide:- burner head limit block pot support torch control knob cartridge cap Organizer Receipt proof slide block 1. Handling when the safety stop mechanism is working The unit stops ignition automatically by the built-in pressure sensor when the unit is used improperly, covered with an iron plate, used in direct sunlight, etc., and the internal pressure of the gas cartridge increases abnormally (57-85 psi or 4-6 kgf/ cm²). In this case, please refer to the instructions and eliminate the cause before resetting the safety mechanism. *Instruction manual - The danger of carbon monoxide - This burner can produce carbon monoxide which has no odor. - May cause suffocation if used indoors. - Never use this stove in an enclosed space such as a camper, tent, car or house Safety features 1. Stop: automatic safety 2. Safety cartridge adjuster Install the gas cartridge 3. Safety hinge When the gas pressure in the gas cylinder increases abnormally for some reason, the gas supply from the container to the burner automatically stops and stops ignition. Unless the control knob is in the “OFF” position, you cannot install the cylinder in the burner enclosure compartment. To protect the gas leakage from the joint between the burner and the cylinder, two sealing packs are built into the joint. Handling model instructions CAUTION: Use only the gas pressure regulator supplied with this hob. - This regulator is set to an outlet pressure of 1.25 psi Install the gas cartridge 1. Open the cylinder cover to 90 degrees. (Fig. 1) 2. Turn the burner counterclockwise to the correct direction. (Fig. 2) 3. Turn the knob to the """"" off position. 4. Place the gas cylinder with the cylinder guide arrow in the upper right position 5. Push the cylinder into the regulator until you hear a “click”. (Fig. 4) * If the knob is not in the “OFF” position, the gas cartridge cannot be set in the specified position due to the safety locking mechanism. * Ensure that the cylinder guide arrow and the receiving guide always meet 6. Make sure that there is no metallic dust on the magnetic surface and the inlet bowl before connecting the cylinder * If the cylinder is not adjusted properly, gas will leak with a hissing sound. Check that there is no sound The cylinder supply system is arranged to provide proper fuel intake with the intake from the operating cylinder - If there is metal dust on the surface of the magnet, the cylinder will fail to connect properly, resulting in a gas leak. Use selling tape to remove dust metallic dust Procedures for checking for gas leaks: If you smell gas, do not attempt to light the stove. To check for gas leaks, use a soapy cloth and gently apply it to the joint between the butane cylinder guide and the receiving guide. (Fig. 4) primers 1. Push and turn the knob to the “Ignition” position until the spark plug makes a clear click. Make sure the burner lights up. (Fig. 5) 2. If no flare-up occurs, repeat the instructions. - Thermal energy control - Heat energy can be controlled by turning the knob from a strong flame to a step-down flame at a simmer. Please use your unit in the proper thermal setting. * When switching to a simmer step-down flame, hold the handle down carefully to extinguish the flame. Suspension 1. To turn off, return the knob to the “OFF” position. (Fig. 6) 2. Take out the gas cartridge 3. Some gas remains in the unit after shutdown As a safety measure, turn the handle over and use it again - Handling the gas cylinder after use - Make sure to take out the gas cylinder. Always put the cap on the cylinder and store it in well-ventilated, non-damp and cool places (temperature below 40°C/104°F). The gas cylinder must be stored in the upper right position. The cylinder must be separated when the burner is in storage.
